Sapozhnikov Plastometer – (Automatic Plastometric Indices Determinator)

Our Chicago laboratory is equipped with two CKIC Automatic Plastometric Indices Determinators or Sapozhnikov Plastometers (https://www.ckic.net/products/coking-coal-indices-determinator/). These are very good instruments in determining coals expansion or contraction properties – critical for coke oven-life longevity. The X and Y indices, or total contraction (X), and plastic layer thickness (Y) that the Sapozhnikov Plastometer produces are used as a good indicator for coke quality and specifically Stability prediction. They can also be used to determine if a blend will be susceptible to excessive oven wall pressures. Recently published works in

Gieseler Plastometer  – ( Fluidity )

A FRICO plastometer in Victoria was used for three decades in the analysis of single coals and sequential blends for Inland Steel in the late 1980s and early 1990s. Complementing petrography in monitoring product and blend consistency, and verifying process variables. It was retired in 2011 after a long tenure.

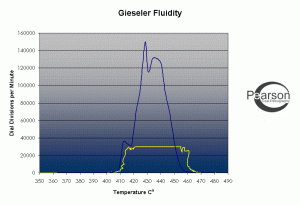

Frico Plastometer vs Preiser Plastometer

The next-generation Preiser plastometer in our Chicago laboratory can measure to 180,000+ ddpm’s, which is vital for the accurate characterization of Ultra-Fluid Appalachian high-volatile coals, whose unique characteristics are caused by bitumen-soaked vitrinite , which are highly-fluorescent .

Orange-coloured fluorescing Vitrinite, containing yellow Liptinites. Blue light excitation (BG12), emission filter K510.

Ultra-Fluid Appalachian high-volatile coal showing orange-coloured fluorescing Vitrinite. Blue excitation (BG12) emission filter K510.

Some three decades ago, it was demonstrated by Creaney, Pearson & Marconi (1980), that it is not the volume of liptinites, but the volume of fluorescing vitrinite that correlates with maximum fluidity measured in Wolgan coal, from near Lithgow, New South Wales. Now, variations in maximum Gieseler fluidity of many West Virginia based coals is directly correlated with fluorescence intensity.

Gieseler plastometry is another tool in the prediction of single coal and coal blend consistency and complements petrographic analysis in the determination of coal quality and product consistency.

Gieseler plastometry is another tool in the prediction of single coal and coal blend consistency and complements petrographic analysis in the determination of coal quality. Using the rank of the coal and the temperature of maximum fluidity divided by the plastic range (GTMF/PR), it is possible to accurately predict the coke stability. The trends match that of the Sapozhinkov prediction and coke oven tests completed in independent studies. See our recently published and presented papers at the ECIC (European Coke and Ironmaking Congress 2024 held in Bardolino, Italy.
